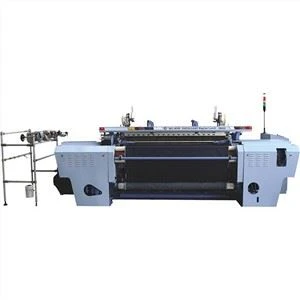

WL808 ULTRAFAST PIB RAPIER LOOM TECHNICAL DATA:
Daim ntawv thov:paj rwb, linen, plaub hau, txhob lo lo ntxhuav, polyester, iav fiber, hlau fiber thiab lwm yam, zoo li denim ntaub, tsho ntaub, nplua ntaub. Ntaub ntaub, rooj zaum ntaub, phab ntsa ntaub thiab lwm yam tsev textile ntaub, hluav taws xob iav fiber, ntaub roving iav fiber ntaub thiab advertisement ntaub.
Dav (cm):150, 190,210, 220,230,240,250, 280, 340, 360,380. 400, 420, 540.
Maximum ceev:880rpm, qhov siab tshaj plaws weft insertion ceev: 1900m / min.
Kev tsim qauv tsim feature:plaub qhov kev sib txuas pas nrig tsav, ya dawb lossis ib qho kev qhia hooks (16mm gripper daim kab xev los yog 7.8mm gripper daim kab xev) weft insertion; matched cam weft ntaus system ntawm lub hauv siab beam; hluav taws xob dobby shedding, siab tshaj 20 shafts dobby. cam shedding, siab tshaj 8 shafts cam. hluav taws xob jacquard shedding, siab tshaj 20000 hooks; hluav taws xob servo tso tawm, warp beam ntim Ф800mm, Ф1000mm, Ф1250mm; hluav taws xob servo nqa, weft ntom ntau 1-120picks/cm.
Siv txoj kev:
Daim ntaub yob hauv lub tshuab, qhov siab tshaj plaws dov txoj kab uas hla Ф500mm-600mm;
Batching sab nraum lub tshuab, siab tshaj dov txoj kab uas hla Ф1000mm-Ф1600mm;
Batching sab nraum lub tshuab nrog cov tub ntxhais dov, qhov siab tshaj plaws dov txoj kab uas hla Ф800mm-900mm.
Weft selector: 4colors, 6colors, 8colors, txhua tus xaiv ntiv tes kauj ruam lub cev muaj zog tswj nws tus kheej.
Cutter:mechanical weft cutter mechanical selvage cutter, hluav taws xob selvage cutter, kub yaj cutter.
Automatic weft detecting:Hydro lub cev muaj zog thawb lub iav ncej, ua rau cov shedding thiab weft insertion system txav deb, ua kom tiav cov weft nrhiav thiab kho revert.
Automatic tswj:lub computer tswj qhov system, kov npo, warp xov xov load cell sensor, pib nres, pib pib, qeeb suab, nws pib weft xaiv, nws pib kho leveling, weft them, nws pib txhaum kev lees paub thiab kev tiv thaiv kev nyab xeeb, thiab lwm yam.
Sumo lub cev muaj zog:5 5-7.5kw.
Haum rau ntau yam ntaub
