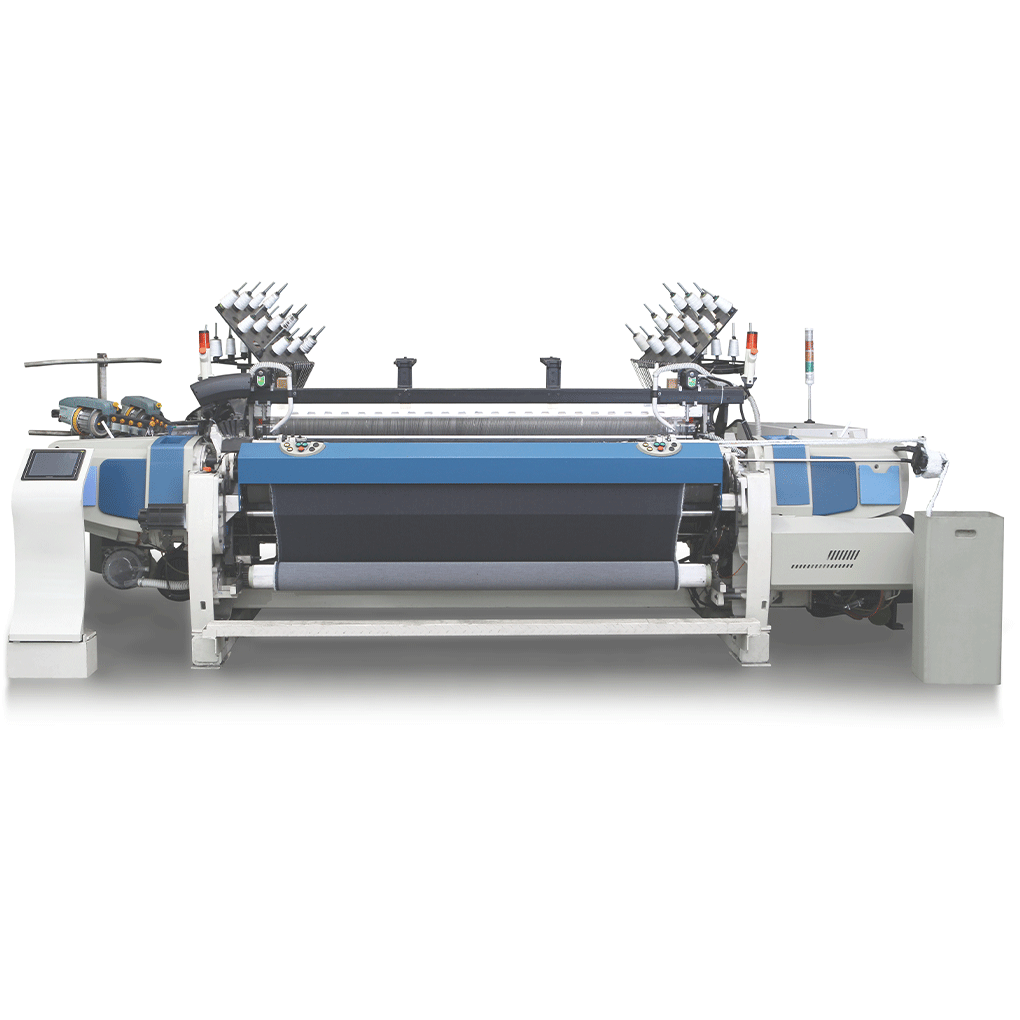

Rapier Loom

Nws yog tshwj xeeb tshaj yog haum rau weaving fabrics uas yuav tsum tau versatility thiab nquag hloov nyob rau hauv cov qauv los yog designs. Rapier looms tuaj yeem ua ntau hom xov paj thiab muaj peev xwm tsim cov ntaub nrog cov qauv sib txawv, suav nrog ntau xim weft insertions, ua rau lawv zoo tagnrho rau kev tsim cov xov paj-dyed khoom nrog txog 16 xim weft yarns.
Lub tshuab tau muab faib ua ob hom: nruj thiab yoog raws rapiers, ob qho tib si tuaj yeem siv los kho cov xov paj sib txawv thiab cov ntaub dav. Ob chav rapier looms yog tshwj xeeb tshaj yog ua tau zoo ntawm kev nthuav dav ntaub dav, muaj peev xwm txog li 110 ntiv tes. Lawv kuj paub txog lawv cov kev tsav tsheb tshwj xeeb uas yooj yim los tswj thiab kho, ua kom haum rau cov kev hloov pauv ntawm daim ntaub dav thiab nrawm nrawm los tiv thaiv cov xov paj puas.
Rapier looms yog dav siv nyob rau hauv zus tau tej cov tsev textiles thiab industrial fabrics. Lawv tau tsim los rau kev siv thoob ntiaj teb thiab tuaj yeem xaws ntau yam ntaub ntawv, los ntawm cov ntaub plaub classic, paj rwb, thiab cov txiv neej ua fibers mus rau feem ntau technically xav tau filament yarns, finest silk, thiab zoo nkauj yarns. Kev ua tau zoo thiab kev ua haujlwm ntawm rapier loom ua rau nws yog qhov kev xaiv nrov hauv kev lag luam textile rau kev tsim txhua yam los ntawm lub teeb mus rau hnyav fabrics thiab los ntawm cov qauv yooj yim mus rau complex.

Projectile looms thiab rapier looms yog ob hom kev kub ceev weaving tshuab siv nyob rau hauv kev lag luam textile, tab sis lawv ua hauj lwm siv cov txheej txheem sib txawv rau weft insertion, txheej txheem ntawm threading lub weft yarn los ntawm warp yarns. Nov yog qhov sib txawv tseem ceeb ntawm ob:
1. Weft Insertion Method:
Projectile Loom: Siv ib qho me me, feem ntau yog hlau, qhov projectile lossis mos txwv uas tau txav los ntawm lub tsev los nqa cov xov paj ntaub hla qhov dav ntawm lub loom. Cov xov paj weft yog tuav los ntawm ib tug pirn (ib tug me me ntxaiv) uas yog txuas mus rau lub projectile.
Rapier Loom: Siv ib los yog ob qhov nruj lossis hloov tau zoo li rab ntaj zoo li tus pas nrig hu ua rapiers nqa cov xov paj los ntawm lub tsev. Tus rapier grabs cov xov paj los ntawm weft feeder thiab txav nws hla lub warp.
2. Ceev:
Projectile looms feem ntau sai dua li rapier looms, thiab muaj peev xwm ntawm cov ntaub ntawv ntau dua, ua rau lawv tsim nyog rau cov khoom loj ntawm cov ntaub thiab yooj yim weaves.
3. Adaptability:
Projectile Loom: Thaum ceev, qhov projectile looms yuav tsis hloov mus rau txoj kev weaves los yog yarns me me piv rau rapier looms.
Rapier Loom: Muab kev hloov pauv ntau dua thiab muaj peev xwm ua tau ntau yam, muaj peev xwm ntawm kev nthuav dav ntawm cov ntaub nrog cov qauv sib txawv thiab hom xov paj, suav nrog ntau xim weft insertions.
4. Kev sib xyaw ntawm cov ntaub:
Projectile looms feem ntau yog siv rau kev yooj yim weaves vim muaj kev kub ceev ntawm qhov projectile, uas tuaj yeem ua rau cov xov paj tsawg dua.
Rapier looms yog qhov nyiam rau ntau cov ntaub thiab cov ntaub mos mos vim qhov kev tswj xyuas ntau dua thiab maj mam ntxig ntawm cov ntaub los ntawm cov rapiers.
5. Kev tu:
Qhov projectile looms yuav xav tau kev saib xyuas ntau zaus vim yog lub tshuab propulsion system ntawm cov projectiles.
Rapier looms, nrog rau lawv txoj kev ncaj nraim rapier zog, tej zaum yuav yooj yim los tswj nyob rau hauv qee kis. "

Shuttle thiab rapier looms yog ob qho tib si siv nyob rau hauv kev lag luam textile rau weaving fabrics, tab sis lawv txawv heev nyob rau hauv lawv tsim, kev ua hauj lwm, thiab hom fabrics lawv zoo tshaj plaws haum rau:
1. Weft Insertion Mechanism:
Shuttle Loom: Siv me me, feem ntau taw tes, ntaus ntawv hu ua lub shuttle uas nqa cov xov paj rov qab los ntawm lub tsev (qhov chaw nruab nrab ntawm cov xov warp). Lub shuttle yog kev lig kev cai los ntawm kev xaiv cov txheej txheem uas suav nrog ib tug reed thiab batten.
Rapier Loom: Siv cov rapiers nruj lossis hloov tau yooj yim, uas zoo li ntev, tiaj tus, zoo li rab ntaj, nqa cov xov paj los ntawm lub tsev. Tus rapier grabs cov xov paj los ntawm weft feeder thiab txav nws hla cov xov warp.
2. Ceev:
Shuttle looms tau ib txwm ua qeeb qeeb piv rau cov niaj hnub rapier looms, uas yog tsim los rau ntau dua speeds.
3. Hom xov paj:
Shuttle Loom: tuaj yeem tsim nyog rau kev xaws nrog ntau hom xov paj, suav nrog cov xov paj uas muag thiab textured, vim tias cov xov paj maj mam tuav.
Rapier Loom: Thaum muaj peev xwm tuav tau ntau yam xov paj, nws yuav tsis tsim nyog rau cov xov paj uas muag heev vim muaj peev xwm ua rau cov xov paj ntau dua thiab puas.
4. Adaptability:
Shuttle Loom: Nyuaj yuav muaj ntau yam hauv kev sib txawv ntawm cov ntaub, nrog rau cov qauv thiab textures.
Rapier Loom: Muaj kev hloov pauv tau zoo ib yam, tshwj xeeb tshaj yog niaj hnub rapier looms, uas tuaj yeem xaws ntau hom ntaub nrog cov qauv sib txawv thiab ntau hom xov paj, suav nrog ntau xim weft insertions.
5. Kev sib xyaw ntawm cov ntaub:
Shuttle looms feem ntau yog siv rau kev xaws cov qauv thiab cov qauv sib txawv vim lawv muaj peev xwm hloov cov xov paj yooj yim thaum lub sij hawm weaving.
Rapier looms yog tsim rau ob qho tib si yooj yim thiab nyuaj weaves, nrog cov qauv niaj hnub muab cov qib siab ntawm kev muaj peev xwm ua qauv. "

Rapier weaving yog ib hom kev weaving uas siv ob los yog ntau dua nruj heddles nqa warp threads ntawm nws tus kheej. Lub ntsiab zoo ntawm rapier weaving muaj xws li:
1. Flexibility: Rapier weaving tshuab yog qhov hloov tau yooj yim thiab tuaj yeem tsim tau ntau yam ntaub nrog cov ntaub ntawv sib txawv thiab cov qauv.
2. Kev kub ceev: Cov tshuab no tuaj yeem ua haujlwm ntawm kev kub ceev, uas ua rau kev ua haujlwm ntau lawm.
3. Versatility: Lawv tsim nyog rau kev xaws ob qho tib si hnyav thiab lub teeb fabrics, nrog rau cov uas muaj siab warp ceev thiab complex qauv.
4. Tsis tshua muaj suab nrov: Rapier weaving tshuab nyiam nyob ntsiag to dua li lwm hom tshuab xaws.
5. Txo kev ua haujlwm: Lub tshuab hluav taws xob ntawm cov txheej txheem weaving txo qhov kev xav tau ntawm kev siv tes ua haujlwm.
Kev Txhim Kho Zoo: Qhov tseeb ntawm cov txheej txheem rapier weaving tuaj yeem ua rau kev txhim kho ntaub zoo nrog tsawg dua.
Rapier weaving yog tshwj xeeb tshaj yog zoo rau cov ntaub uas yuav tsum tau ib tug high degree ntawm tsim complexity los yog qhov twg siv ntau hom yarns yog tsim nyog.
